Photo Gallery

Photo Album: Foundation Repair Contractor in Monticello, Kentucky

This home had a sinking foundation in one corner, which was messing up the wooden framing of their back deck. We installed a helical pier system to resolve this issue in Monticello, KY, for the homeowner. By digging trenches around the corner of the home to expose the footing, we were able to screw our piers down into load-bearing soil. We then attached brackets that connected the footing to the piers, which successfully transfered the weight of the home to stable soil. We then lifted the home with hydraulic attachments on the piers, which helped fix sticky doors and windows near the problematic corner of the home. Be sure to scroll through the photos to learn more!

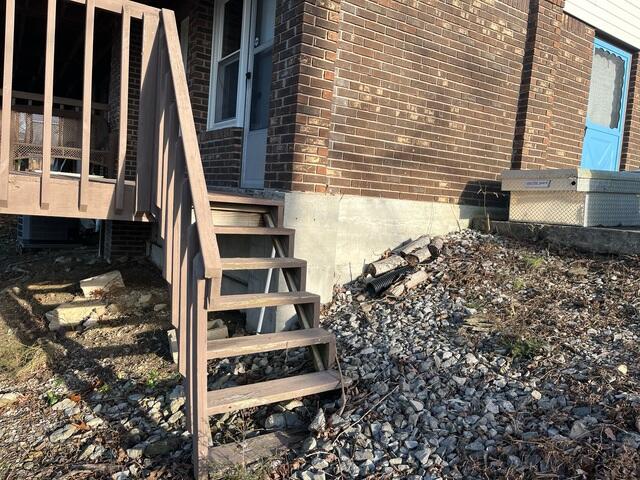

Problematic Corner

This door was becoming increasingly harder to open and close for the homeowner.

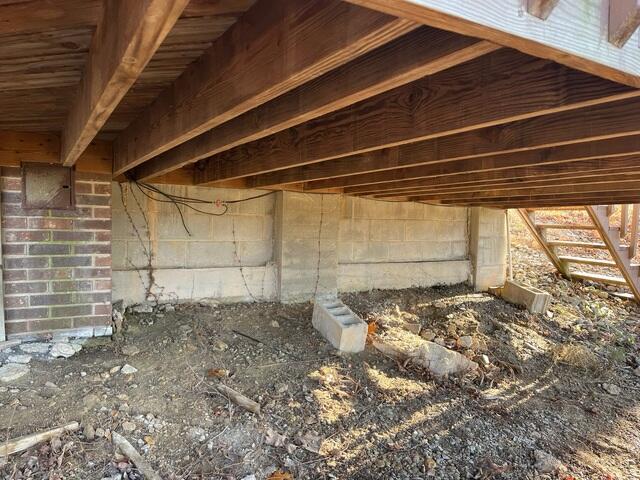

Deck Troubles

Unfortunately this deck that was connected to the foundation was sinking along with the foundation. You can kind of tell from this photo that the deck was sloped down towards the right side.

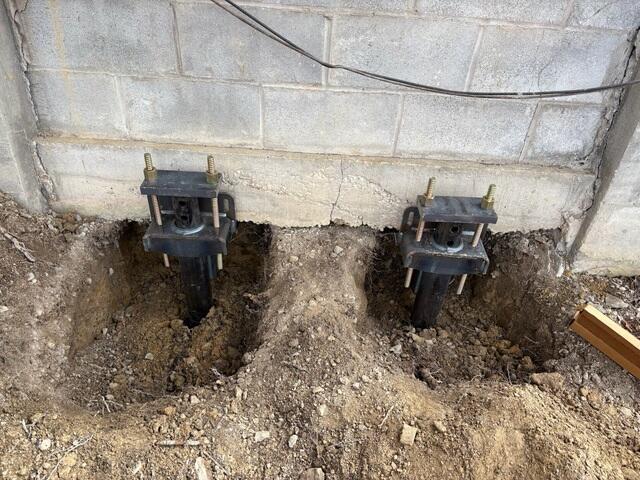

Helical Piers System

These piers have been screwed deep down into load-bearing strata. Load-bearing strata is soil that is compact and won't settle. We are able to tell when the piers hit this area of the soil when our pressure gauges reach a certain degree. The "L" shaped brackets at the top of the cylinder-shaped piers connect the footing of the home to the piers.

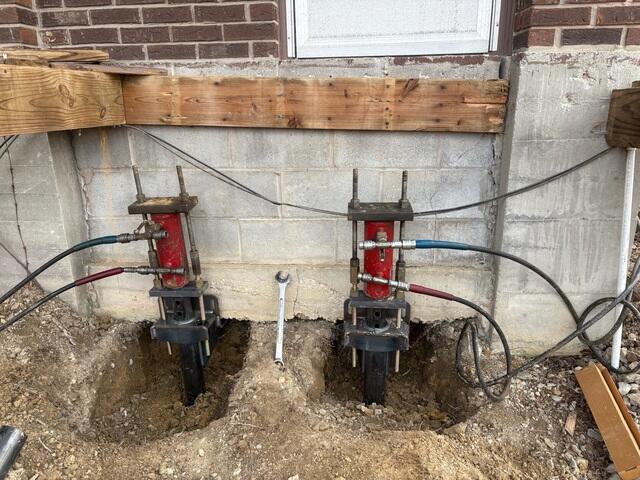

Hydraulic Pier System

The red attachments on the top of the piers allowed us to push the home up. This intricate process helped fix the sticky door issue. You can also see how the framing of the deck had become compromised due to the settling, as the framing was sloping down towards the right.

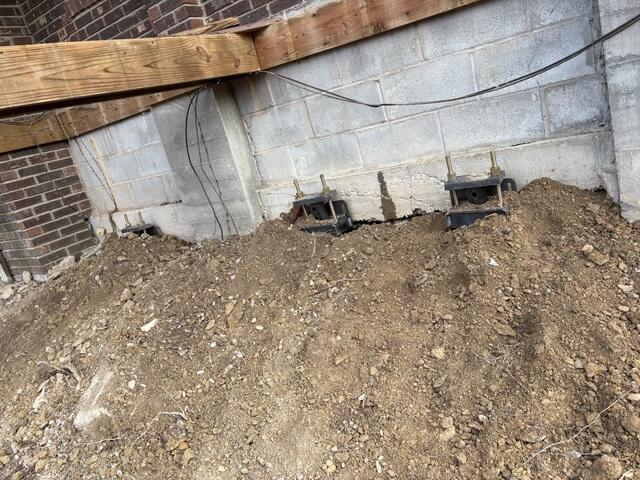

Stabilized Foundation

After we lifted the house back up, we then backfilled the trenches, practically concealing the piers. Now that this corner is stabilized, the homeowner can rebuild their deck and not have to worry about it failing again.
